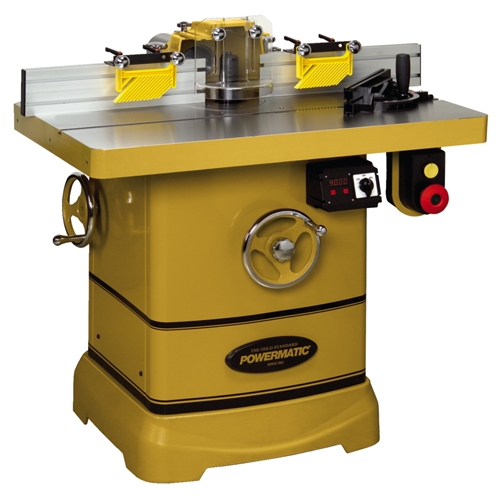

Powermatic PM2700 Shapers (3HP or 5HP)

Powermatic, PM2700, Shaper,3HP,1Ph DRO,Casters
Alternative Views:

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.

Item# Item Name List Price Our Price Qty Add
1280100C PM2700 Shaper (3HP, 1 Ph., 230V)
1280101C PM2700 Shaper (5HP, 1 Ph., 230V)
1280102C PM2700 Shaper (5HP, 3 Ph., 230/460V)
Check the items you wish to purchase, then click

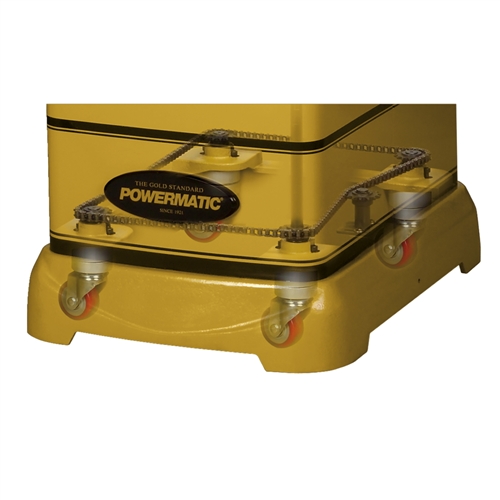

  • Integrated caster system built into the cast iron base for instant shop mobility

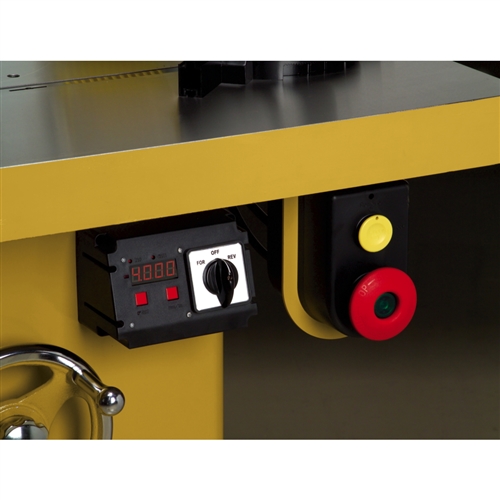

  • Spindle height digital readout for making fine incremental adjustments on multiple passes
  • Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding

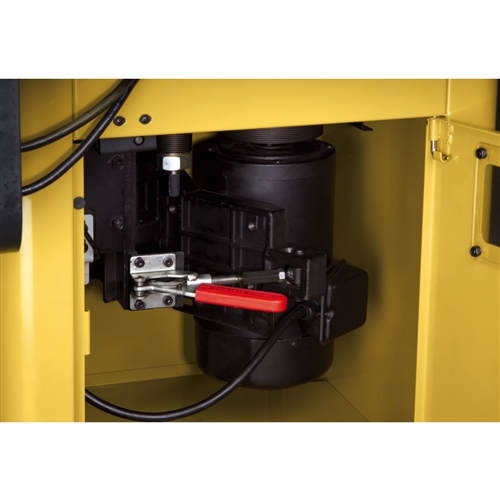

  • Convenient quick lock belt tensioning for easy speed adjustment

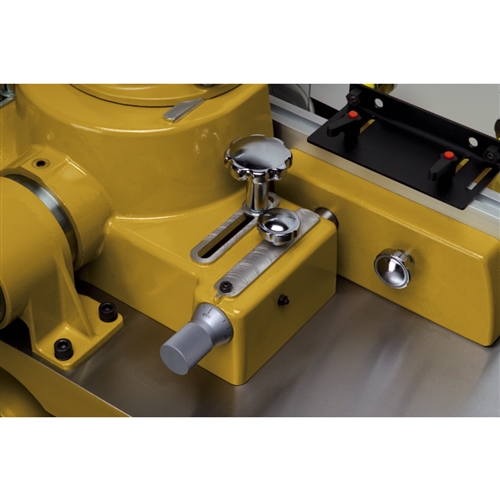

  • Industrial fence system with fine adjust dials for more precise positioning
  • 3HP totally enclosed motor offers plenty of power

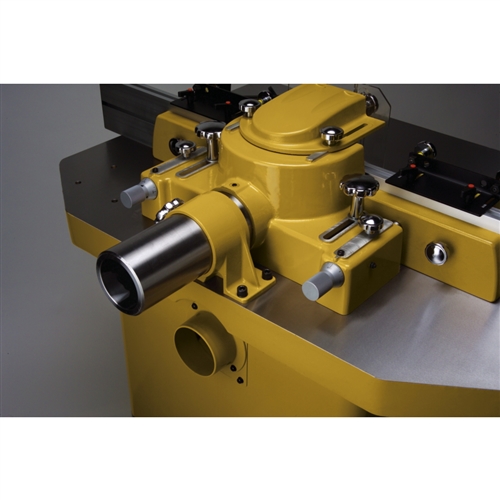

  • Two spindle speeds (reversible) for a variety of work

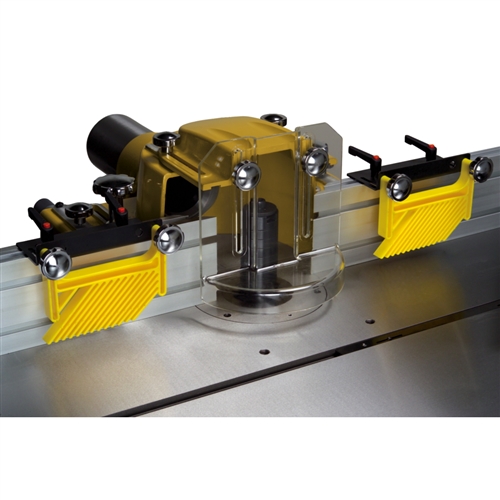

  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table predrilled and tapped for feeder mounting in two locations
  • Fence has dual featherboards for work holding
  • Dual 4" ports for attachment to dust collection system

Technical Specs:
  • Model Number: PM2700
  • Style (Type): Shaper
  • Spindle Speed (RPM): 7,500, 10,000
  • Maximum Spindle Diameter (In.): 1-1/4
  • Spindles Included: 3/4" & 1-1/4"
  • Spindle Size Under Nut (In.): 3/4 (3.42), 1-1/4 (5.15)
  • Spindle Travel (In.): 4
  • Spindle Tilt (Deg.): N.A.
  • Reversible: Yes
  • Table Opening Diameter (In.): 7.33
  • Table Inserts (In.): 2.55, 4.16, 5.75
  • Table Size (In.): 40 x 30
  • Table Height from Floor (In.): 35-1/2
  • Fence Size (L x H) (In.): 18-3/4 x 4-7/8
  • Dust Port Outside Diameter (In.): 4
  • Dust Collection Minimum CFM Required (CFM): 600
  • Digital Readouts: Spindle Height
  • Electrical Controls: Yes
  • Shipping Weight: 769 Lbs.
  • Motor Power:
    Stock Number 1280100C: 3HP, 1 Ph., 230V
    Stock Number 1280100C: 5HP, 1 Ph., 230V
    Stock Number 1280100C: 5HP, 3 Ph., 230/460V

Extended Information:
WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
