Baileigh BR-18E-24, Power Bead Roller Machine

Baileigh BR-18E-24, Power Bead Roller Machine
List Price: $2,124.00
Our Price: $1,749.00
You save $375.00!

Availability:: Usually Ships in 1 to 2 Business Days
Product Code: 1000923

Description Technical Specs

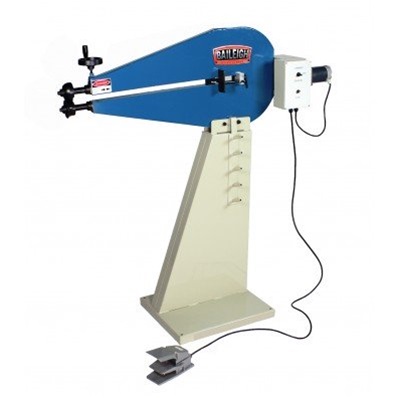

The BR-18E-24 power bead roll has a capacity of 16 gauge mild steel and 14 gauge aluminum.  Powered by 110V this variable speed bead roller is perfect for most beading applications.  The 24” throat depth is perfect for putting beads in 4’x 8’ sheets of sheet metal but is compact enough to make even the most intricate beading patterns.  The frame is made from heavy plate steel that is fully welded for further rigidity.  The bead depth is adjustable via the top roll. Baileigh Industrial offers many sets of tooling for the BR-18E-24 bead roll and the shaft diameter is ¾” and will fit most commercially available roll sets.

All moving parts on the BR-18E-24 have bronze bushings for long life. A powerful 110 Volt industrial grade motor and gearbox drive the rolls forward or reverse. Control of this power bead roll is by a variable speed foot pedal that allows the operator to have both hands free to work the material.

Like most Baileigh Industrial bead rolls, the BR-18E-24 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.
  • 16-Gauge mild steel capacity
  • 16-Gauge aluminum capacity
  • 24" throat depth
  • Foot pedal control
  • Forward and reverse rotation
  • Stand, and depth stop included
  • 1/8 HP, 110V
