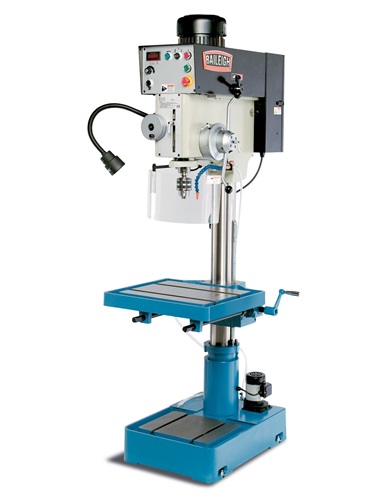

Baileigh DP-1500VS, 20" Variable Speed Drill Press (2 HP, 220V, 1 Phase)
List Price: $8,435.00
You save $1,476.00!
Usually Ships in 1 to 2 Business Days
Drill smarter and harder with this 20” floor-type drill press which tackles hefty capacities at up to 2000 rpm. Built to deliver precise results for years, Baileigh Industrial's model DP-1500VS comes equipped with a variety of time-saving and performance-enhancing features.
Table Size: 22" x 18.5"
Quill Diameter: 2.95"
Quill Feed: .0078", .004", .002" per rev.
Spindle Nose to Table: 22.75"
Spindle Nose to Base: 40.75"
Spindle Speed High: 245 – 2000 rpm
Spindle Speed Low: 85 – 540 rpm
Spindle Taper: MT 4
Table Slot: .625"
Tapping Capacity: .937"
Main Motor: 2 hp
Drill Capacity Cast Iron: 1.75"
Drill Capacity Steel: 1.5"
Power: 220V Single Phase
Shipping Weight: 902 lbs.
Spindle Travel: 5.9"
Column Diameter: 4.52"
Base Dimensions L x W: 27" x 19"
Shipping Dimensions: 40" x 25" x 83"
2 hp motor runs on 220-volt single-phase power and will work practically anywhere.
Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron.
Auto-reversing tapping feature has a capacity of .937”.
Speed range from 65 to 2000 rpm lets you pick the right setting for your project.
Potentiometer dial controls the drill speed.
Digital readout on the front displays the speed in rpm for easy checking.
Sophisticated Delta® inverter drives #4 Morse taper spindle.
Chuck with automatic tool ejector simplifies tooling changes.
Large, machined 22” x 18.5” drill table offers plenty of room for material.
Oversized .625” T-slots allow for secure clamping of a vise or fixture.
Sturdy 4.52” column eliminates flex and boosts drilling accuracy.
Cast base supports rigidity at maximum capacity.
Power-down feed helps to prolong the machine’s lifetime of use.
Safety guard around the spindle with a limit switch protects you and your shop.
Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.
Includes a bright halogen light that bends to enable you to see the material better as you work.
