Home > New Metal Forming > Presses Arbor & Hydraulic > Baileigh HSP-66M-HD, Hydraulic Shop Press - 66 Ton
Alternative Views:	List Price: $15,699.00 Our Price: $12,929.00 You save $2,770.00! Availability:: Usually Ships in 1 to 2 Business Days Product Code: 1012402 Qty:

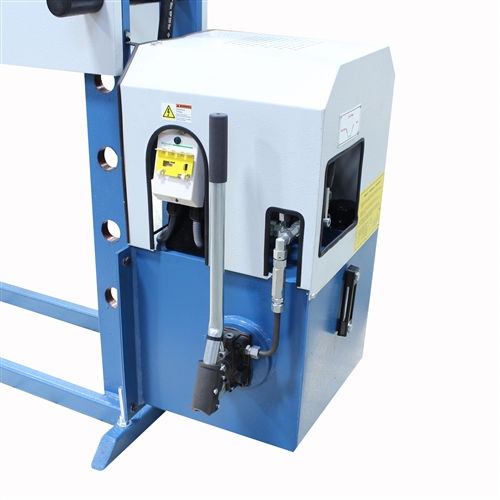

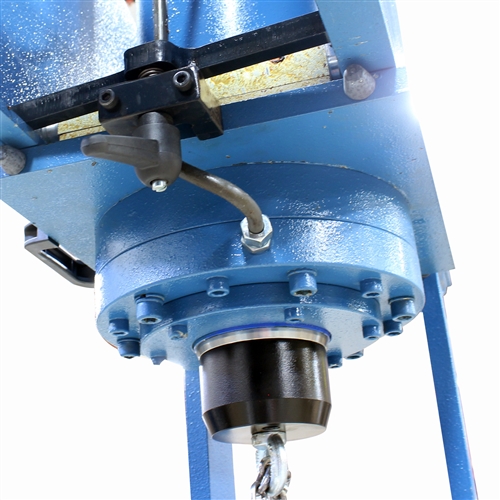

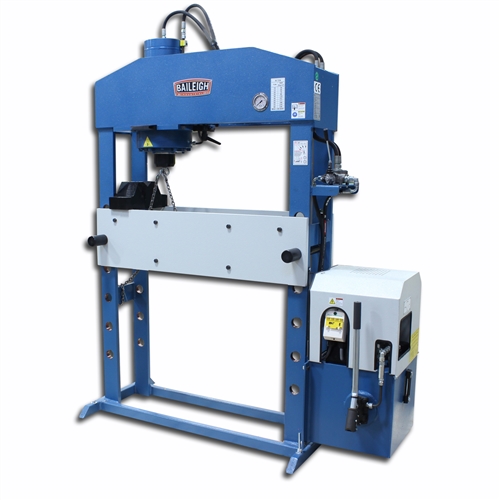

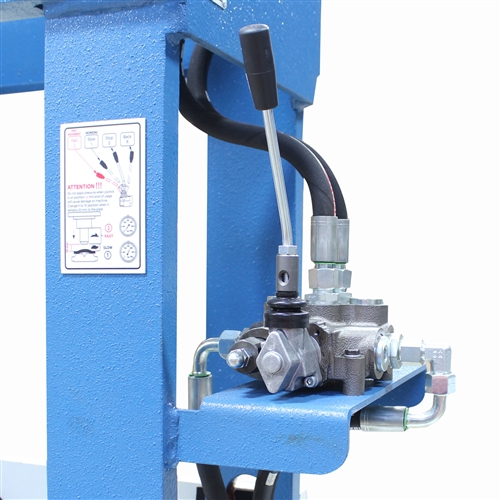

Description Technical Specs   Weighing in at just over 1750 pounds, this motorized H-frame press is built to last. Its welded .375” plate steel structure can handle all the hydraulic system’s force without flexing. Item Number: HSP-66M-HD Return Speed: .393" / sec. Maximum Pressure: 3814 psi Motor: 5.3 hp Piston Head Diameter: 3.94" Pump Speed: .871 / 3.619 / gal/min. Oil Capacity: 7.92 gal Working Speed: .086" / sec. Working Width: 29.52" System Oil Capacity: 2.11 gal Lowering Speed: .362" / sec. Maximum Capacity: 66 tons Cylinder Stroke: 9.85" Cylinder Movable: Yes Cylinder Diameter: 8.26" Rpm: 3000 Power: 220V / 3-phase Shipping Weight: 1764 lbs. Shipping Dimensions: 60" x 40" x 81" Features 66 tons of hydraulic force. 40.94” working width. 9.85” cylinder stroke. Runs on 220 volt 3-phase power. Robust 5.3 hp motor runs on has 2 working speeds: rapid descent and slow approach. Hand pump gives you the option for even finer control. Cylinder moves left or right within the framework to deliver pressure on off-center parts. 7.08”-diameter cylinder automatically returns to the toponce the job is done. 53.34” table fabricated to exacting tolerances. Table features 2 support pins that are 2” in diameter, letting you lock the table in at the correct working height. Lifting chainshelp with the placement of the table and save you muscle strain. Includes pressure regulator and ram cap. Related Products... Baileigh HSP-5A, Hydraulic Shop Press - 5 Ton Baileigh HSP-35A, Hydraulic Shop Press - 35 Ton Baileigh HSP-50A, Pneumatic Shop Press - 50 Ton Baileigh HSP-75A, Pneumatic Shop Press - 75 Ton Our Price: $1,759.00 Add Our Price: $5,279.00 Add Our Price: $4,329.00 Add Our Price: $5,559.00 Add Baileigh HSP-15A, Hydraulic Shop Press - 15 Ton JET AP-3M, 3-Ton Arbor Press Baileigh HSP-100A, Pneumatic Shop Press - 100 Ton JET AP-5M, 5-Ton Arbor Press Our Price: $3,139.00 Add Our Price: $399.00 Add Our Price: $8,819.00 Add Our Price: $1,099.00 Add
