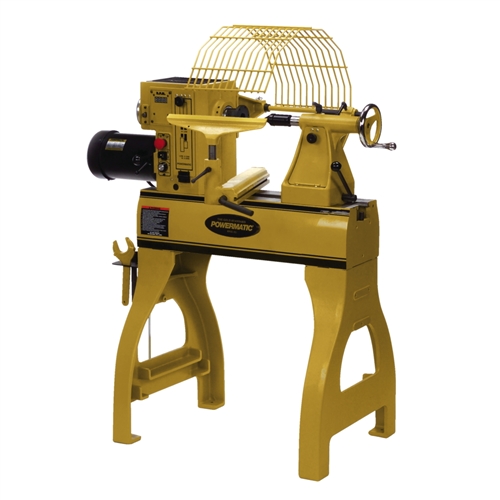

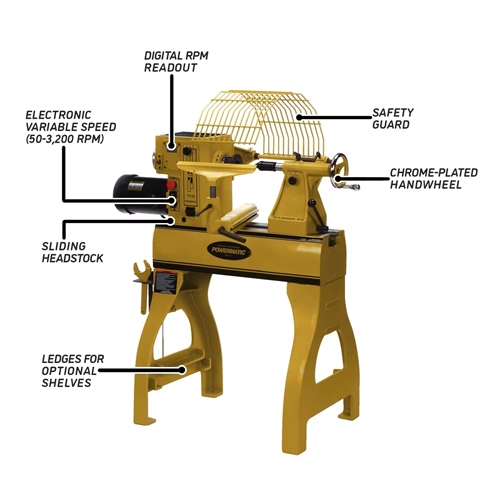

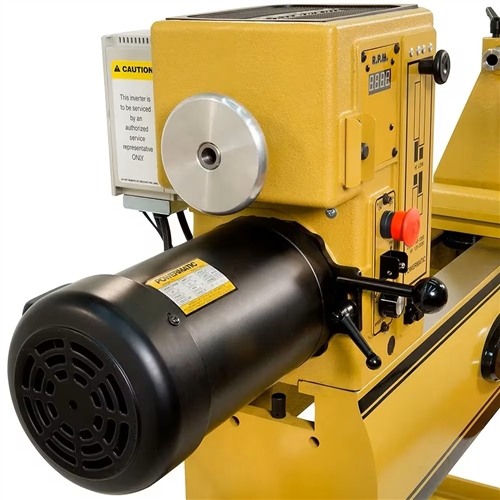

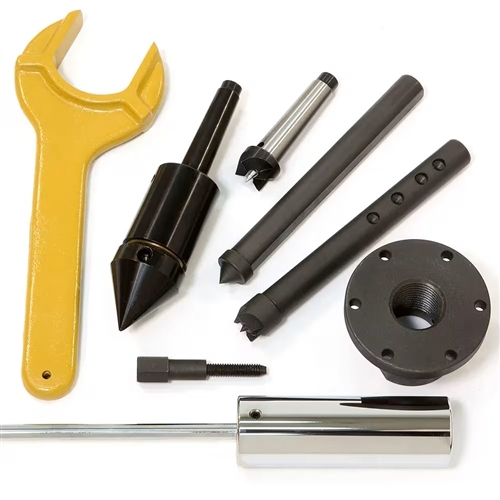

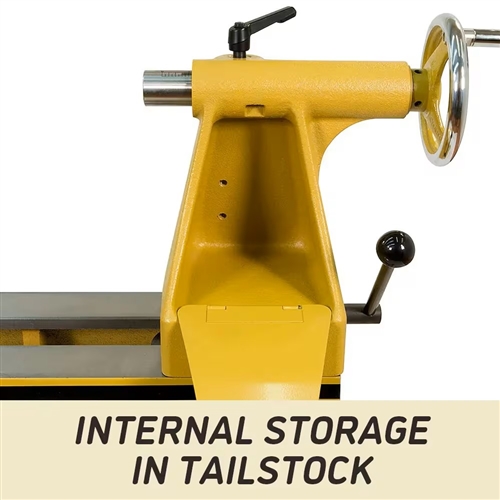

The features you love on the 3520B lathe are now available in a smaller footprint. The PM2020 lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
- Model Number: PM2020
- Stock Number: 1792020
- Swing Over Bed (In.): 20”
- Swing Over Tool Rest Base (In.): 17”
- Distance Between Centers (In.): 20”

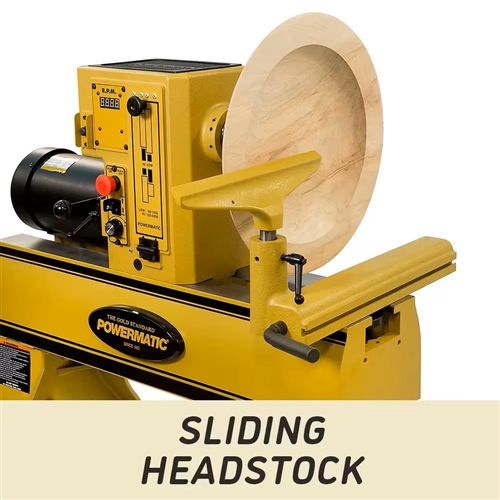

- Headstock Movement: Full Length of Bed
- Spindle Bore: 5/8”
- Tailstock Bore: 3/8”
- Spindle Taper: MT-2
- Quill Taper: MT-2
- Ram Travel Quill Travel: 4-1/2”
- Spindle Threads (In. x TPI): 1-1/4” x 8
- Outboard External Threads (In. x TPI): 1-3/16”-18 UNC

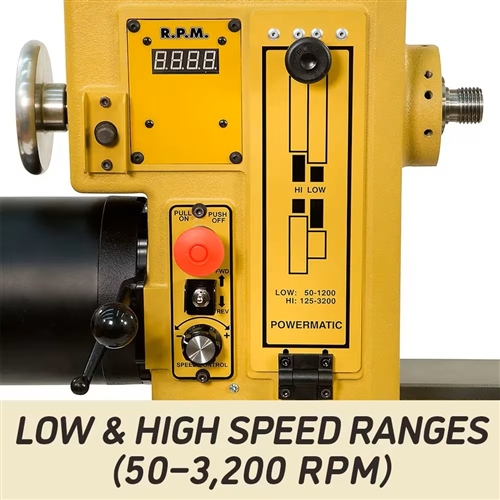

- Spindle Speeds: High 125-3200 RPM / Low 50-1200 RPM
- Speed Range: 50-3200 RPM
- Number of Indexing Positions: 48
- Centerline of Spindle to Floor (In.): 44” (adjustable)
- Outboard Turning: 88”
- Bed Construction: Cast Iron
- Motor Power (HP): 2 HP
- Motor Phase: 3 Ph.
- Motor Voltage (V.): 230V Only
- Wiring Remarks: *VFD will accept 1 phase, or 3 phase power
- Motor Current (Amps): 6.2
- Recommended Circuit Size (Amps.): 20
- Shipping Weight: 582 Lbs.
