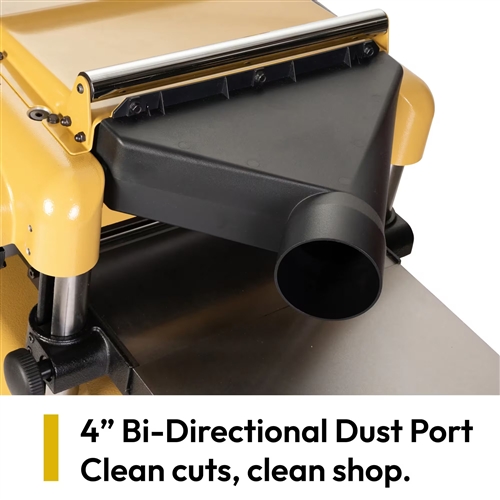

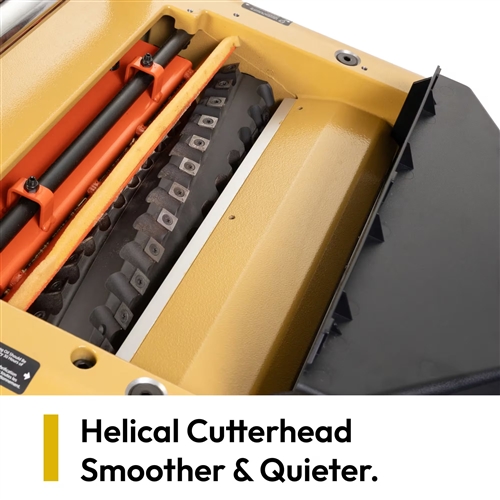

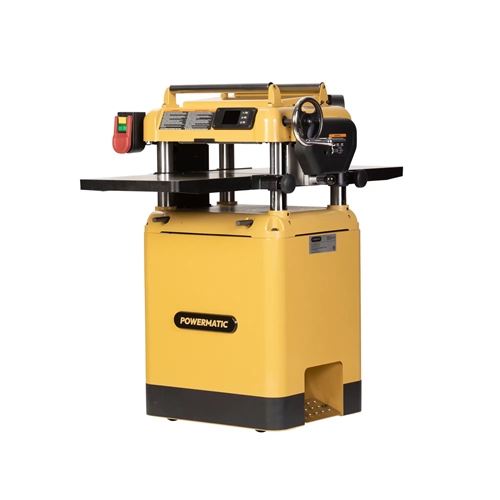

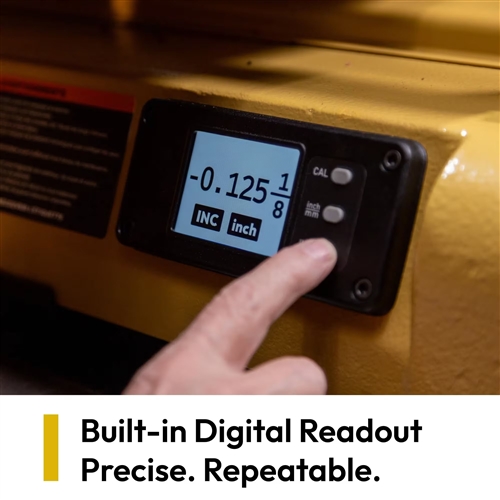

The Powermatic 15BHH is a 15-inch stationary thickness planer designed for woodworking shops that require industrial durability and precision in a versatile floor-standing format. Powered by a 3 HP, 230V, single-phase motor, the 15BHH surfaces hardwoods and softwoods consistently across its full 15-inch cutting width, with a maximum board thickness capacity of 6 inches. Its four-row helical cutterhead carries 48 four-sided carbide inserts running at 5,200 RPM, producing a smooth, professional surface finish with significantly reduced noise and extended insert life compared to straight-knife designs. Inserts are easily rotated or replaced through an accessible cutterhead door, minimizing shop downtime. A built-in digital readout (DRO) enables exact, repeatable thickness settings across passes and operators. Two selectable feed speeds, 16 FPM for finish cuts and 28 FPM for aggressive stock removal, give you precise control over both surface quality and productivity. Heavy cast iron infeed and outfeed tables spanning a full 48-inch surface area provide exceptional rigidity and vibration damping for consistent results across long boards. A 4-inch bi-directional dust port handles chip evacuation efficiently with a 900 CFM minimum requirement. An upgraded caster locking and braking system with oversized emergency stop support safe, stable operation throughout the shop.

• Stock Number: PM1-477
• Model Number: 15BHH
• Coating: None
• Cutterhead Diameter: 3"
• Cutterhead Speed (RPM): 5200 RPM
• Digital Readout: Yes
• Dust Port Outside Diameter (in.): 4 in.
• Feed Rate: 16/28 FPM
• Gross Weight: 486 lbs.
• Input Power: 230V, Single Phase
• Knife Size: 0.59 in. x 0.59 in. x 0.10 in.
• Max. Board Thickness: 6 in.
• Maximum Full Width Depth of Cut: 3/32 in.
• Motor Amps: 14.5 A
• Motor HP: 3 HP
• Motor Phase: Three
• Net weight: 411 lbs.
• Number of Knives: 48
• Number of Speeds: 2 Speeds
• Prewired Voltage: 230V
• Recommended Circuit Size Amp: 30 A
• Required Cfm: 900 CFM
• Style Type: Floor Standing
• Table Height: Manually Adjusted
• Table Material: Cast Iron
• Table Size (in.): 48 in. x 15 in.
• Type of Cutterhead: Helical Head

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
