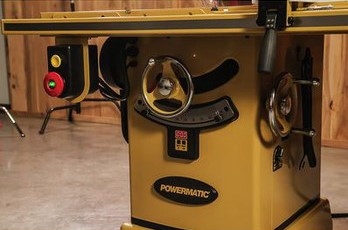

The PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

• Model Number: PM3000B
• Stock Number: PM375350K
• Style (Type): Cabinet Saw
• Blade Diameter (In.): 14”
• Arbor Diameter (In.): 1”
• Arbor Speed (RPM): 4500 RPM
• Maximum Depth of Cut at 90 Degrees (In.): 5-1/8”
• Maximum Depth of Cut at 45 Degrees (In.): 3-1/2”
• Maximum Diameter of Dado (In.): 8”
• Maximum Width of Dado (In.): 13/16”
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2”
• Maximum Rip Right of Blade (In.): 50”
• Maximum Rip Left of Blade (In.): 14”
• Table Type: Cast Iron
• Table Height from Floor (In.): 35-1/4”
• Table Size (In.): 26” x 38”
• Table Size with Extensions (In.): 48” x 38”
• Table T-Slot (In.): 3/4” x 3/8”
• Dust Collection Minimum CFM Required (CFM): 600 CFM
• Dust Port Outside Diameter (In.): 4”
• Motor Power (HP): 7.5 HP
• Motor Phase: 3 Ph.
• Motor Voltage (V.): 230/460V
• Prewired Voltage (V.): 230V
• Motor Current (Amps): 18.4/9.2
• Recommended Circuit Size (Amps.): 30
• Weight: 820 Lbs.

WARRANTY AND SERVICE
JPW, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools.
