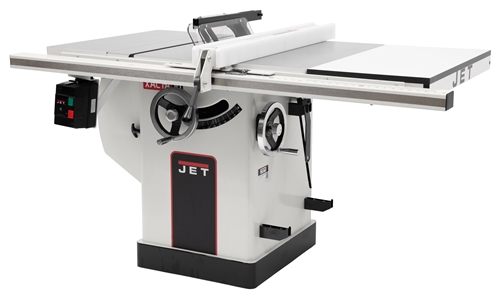

JET XACTASAW Deluxe (5HP, 1Ph, 30" Rip)
List Price: $4,471.00
You save $831.01!
Usually Ships in 1 to 2 Business Days
If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET® 10" DELUXE XACTA® SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA® SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arms reach, also includes an on-board fence and miter gauge storage.
Part Number 708676PK
Blade Diameter 10 "
Arbor Diameter 5/8 "
Arbor Speed 4300 RPM
Maximum Depth of Cut 3 "
Maximum Depth of Cut at 45 Degrees 2 1/8 "
Maximum Cross Cut 21 "
Maximum Rip Right of Blade 30 "
Maximum Rip Left of Blade 13 "
Table in Front of Saw Blade at Maximum Depth of Cut 10 "
Maximum Width of Dado 13/16 "
Maximum Diameter of Dado 8 "
Table Type Cast Iron
Table Height 34 "
Table Size with Standard Extension (L x W) 29 x 42 "
Table Size without Extension (L x W) 29 x 20 "
Rapid Wing Extension n.a.
Table Size without Wings (L x W) 29 x 20 "
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 350 cu.ft/min
Dust Collection Adapter Port n.a.
Leg Stand with Steel Storage n.a.
Miter Gauge Type Deluxe
Motor Power 5 HP
Motor Voltage 230 V
Prewired Voltage 230 V
Motor Current 18 A
Motor Phase 1 Ph
Model Number JTAS-10XL30-5/1DX
Overall Dimensions 38x 36 x 65
Height 38 inch
Width 36 inch
Length 65 inch
Net Weight 490 pound
JET RED ASSURANCE 5-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
EXCLUSIVE 30" Commercial XACTA® Fence II with T-square design

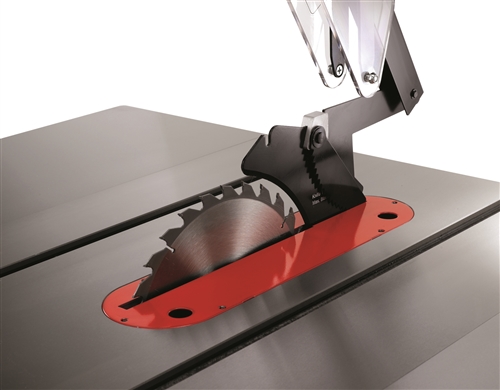

Quick release riving knife greatly reduces binding/kickback risk

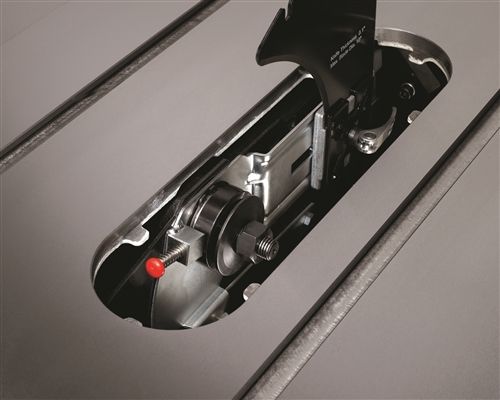

Push button arbor lock (patent pending) for rapid blade change
Shrouded Blade increases dust collection efficiency
Standard 11" left and right cast iron extension wings provides the largest table surface in its class
Poly-V drive belt system delivers efficient, quiet operation
Rail-mounted magnetic switch is easy to reach and provides overload protection
Enclosed cabinet with built-in sealed storage drawer
Hinged motor cover on cabinet gives quick access to the motor and belts
Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
Built-in 4" port for dust collection
Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
Powder coated paint for a long-lasting, chip-resistant finish
